800
HeavyweightProduct Specifications

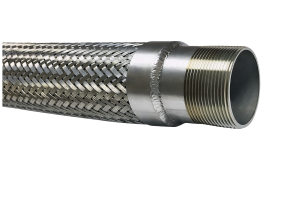

- A heavy weight flexible metal hose designed for higher pressure and more severe applications
- 316L and 321 SS tube options, 304L & 316L grade braided outer
- Pressures listed have been reduced to account for welding as the method of attachment
PRIMARY APPLICATION
Flexible connection in permanent and elevated heat installations
Size Range
Export Specifications
| PART # | HOSE I.D. (inches) |
HOSE O.D. (inches) |
Working Pressure (PSI) |
Burst Pressure (PSI) |
Min. Bend Radius (Inches) |
Bend Radius (dynamic) |
WEIGHT: LBS / FT | REINFORCEMENT |
|---|---|---|---|---|---|---|---|---|
|
816-004
|
0.25 | 0.5 | 180 | 2.5 | 5 | 0.09 | 0 | |
|
816-1SHB-004
|
0.25 | 0.57 | 2562 | 10250 | 2.5 | 5 | 0.17 | 1 |
|
816-2SHB-004
|
0.25 | 0.64 | 4099 | 16400 | 2.5 | 5 | 0.26 | 2 |
|
816-006
|
0.38 | 0.67 | 100 | 2.75 | 5.5 | 0.13 | 0 | |
|
816-1SHB-006
|
0.38 | 0.74 | 1501 | 6004 | 2.75 | 5.5 | 0.25 | 1 |
|
816-2SHB-006
|
0.38 | 0.81 | 2401 | 9604 | 2.75 | 5.5 | 0.36 | 2 |
|
816-008
|
0.5 | 0.82 | 80 | 4 | 8 | 0.39 | 0 | |
|
816-1SHB-008
|
0.5 | 0.92 | 2194 | 8777 | 4 | 8 | 0.63 | 1 |
|
816-2SHB-008
|
0.5 | 1.02 | 3510 | 14040 | 4 | 8 | 0.87 | 2 |
|
816-012
|
0.75 | 1.21 | 70 | 4 | 8 | 0.48 | 0 | |
|
816-1SHB-012
|
0.75 | 1.31 | 1311 | 5244 | 4 | 8 | 0.79 | 1 |
|
816-2SHB-012
|
0.75 | 1.41 | 2098 | 8392 | 4 | 8 | 1.1 | 2 |
|
816-016
|
1 | 1.5 | 40 | 4.5 | 9 | 0.79 | 0 | |
|
816-1SHB-016
|
1 | 1.6 | 1069 | 4276 | 4.5 | 9 | 1.2 | 1 |
|
816-2SHB-016
|
1 | 1.7 | 1710 | 6840 | 4.5 | 9 | 1.61 | 2 |
|
816-020
|
1.25 | 1.85 | 33 | 5 | 10 | 1.02 | 0 | |
|
816-1SHB-020
|
1.25 | 1.97 | 1110 | 4443 | 5 | 10 | 1.66 | 1 |
|
816-2SHB-020
|
1.25 | 2.1 | 1776 | 7040 | 5 | 10 | 2.3 | 2 |
|
816-024
|
1.5 | 2.17 | 20 | 5 | 10 | 1.36 | 0 | |
|
816-1SHB-024
|
1.5 | 2.3 | 868 | 3472 | 5 | 10 | 2.11 | 1 |
|
816-2SHB-024
|
1.5 | 2.43 | 1388 | 5552 | 5 | 10 | 2.86 | 2 |
|
816-032
|
2 | 2.51 | 15 | 5.75 | 11.5 | 1.6 | 0 | |
|
816-1SHB-032
|
2 | 2.64 | 810 | 3240 | 5.75 | 11.5 | 2.56 | 1 |
|
816-2SHB-032
|
2 | 2.76 | 1296 | 5184 | 5.75 | 11.5 | 3.52 | 2 |
|
816-040
|
2.5 | 3.23 | 10 | 12 | 24 | 2 | 0 | |
|
816-1SHB-040
|
2.5 | 3.36 | 578 | 2312 | 12 | 24 | 3.12 | 1 |
|
816-2SHB-040
|
2.5 | 3.49 | 925 | 3700 | 12 | 24 | 3.3 | 2 |
|
816-048
|
3 | 3.78 | 10 | 14 | 28 | 2.97 | 0 | |
|
816-1SHB-048
|
3 | 3.91 | 540 | 2160 | 14 | 28 | 4.42 | 1 |
|
816-2SHB-048
|
3 | 4.03 | 864 | 3456 | 14 | 28 | 5.87 | 2 |
|
816-064
|
4 | 4.81 | 8 | 20 | 40 | 3.1 | 0 | |
|
816-1SHB-064
|
4 | 4.93 | 333 | 1332 | 20 | 40 | 4.55 | 1 |
|
816-2SHB-064
|
4 | 5.05 | 533 | 2132 | 20 | 40 | 6 | 2 |
|
816-096
|
6 | 6.87 | 5 | 24 | 48 | 3.85 | 0 | |
|
816-1SHB-096
|
6 | 7.1 | 266 | 1062 | 24 | 48 | 6.45 | 1 |
|
816-2SHB-096
|
6 | 7.33 | 425 | 1700 | 24 | 48 | 9.05 | 2 |
|
FC816-3SHB-096
|
6 | 7.56 | 640 | 2560 | 24 | 48 | 13.19 | 3 |
|
816-128
|
8 | 9.09 | 6 | 32 | 63 | 6 | 0 | |
|
816-1SB-128
|
8 | 9.19 | 234 | 934 | 32 | 63 | 10 | 1 |
|
C816-2SB-128
|
8 | 9.29 | 450 | 1800 | 32 | 63 | 18 | 2 |
|
C816-3SB-128
|
8 | 9.39 | 550 | 2200 | 32 | 63 | 22 | 3 |
